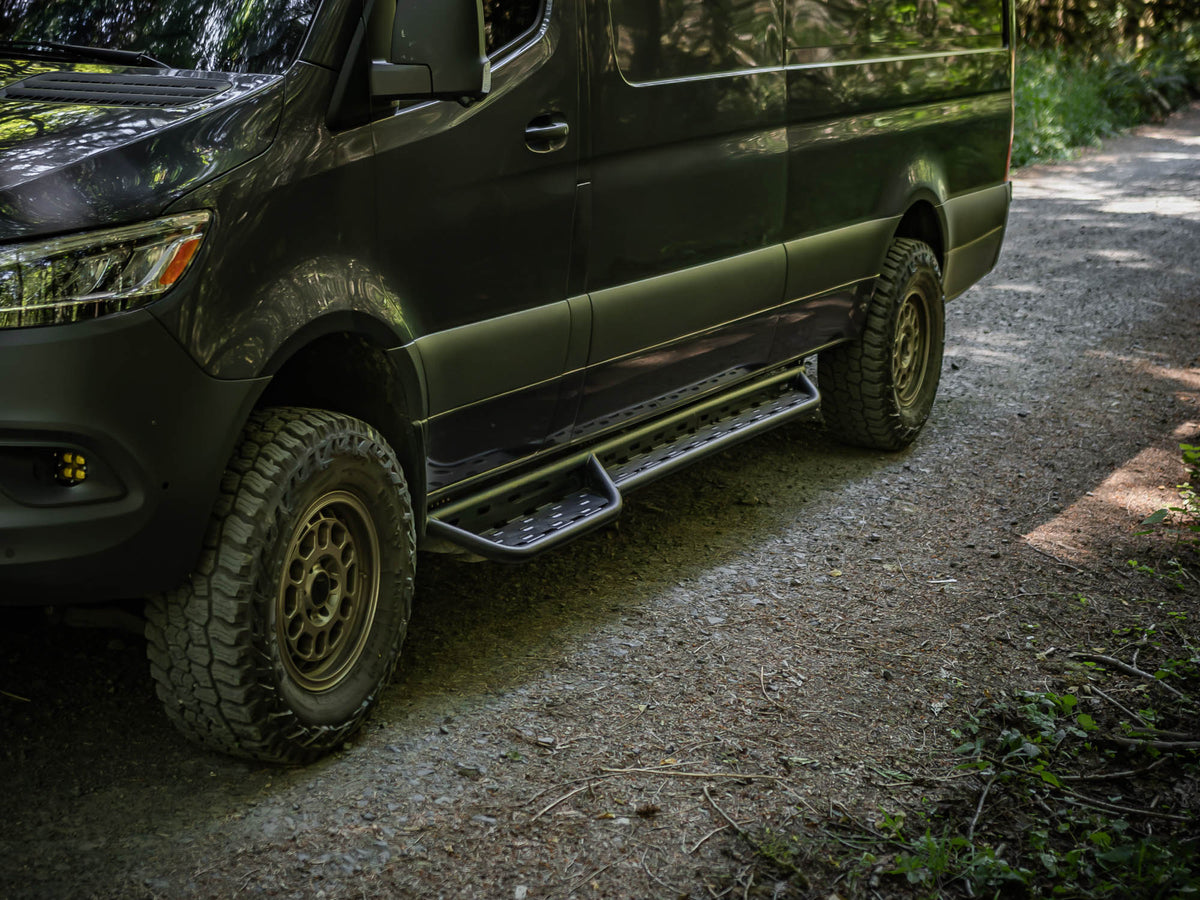

Lowered step height for easy cab and side-door access
Sprinter Alloy Low Steps fitted to a 170 Sprinter on a gravel road

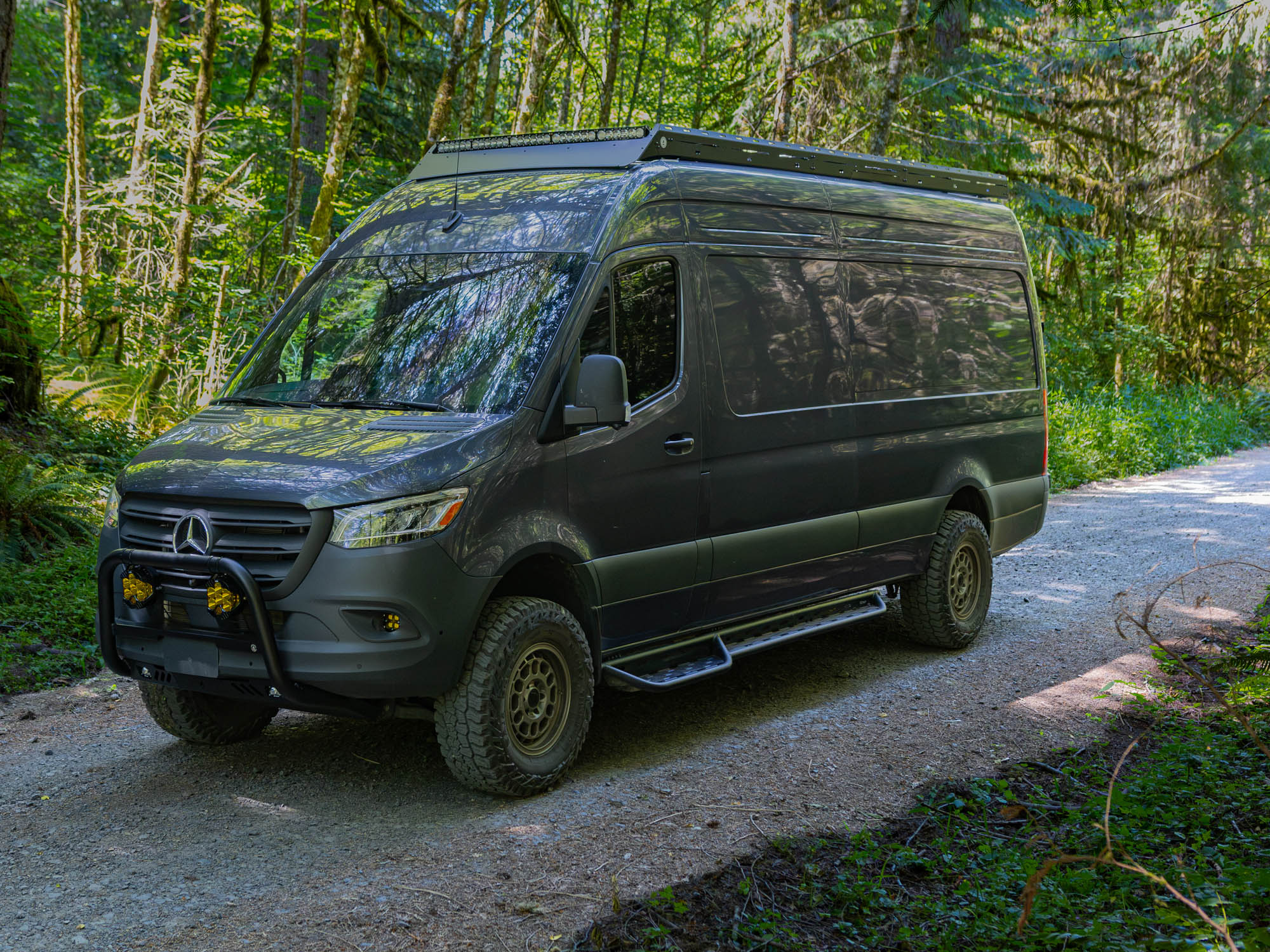

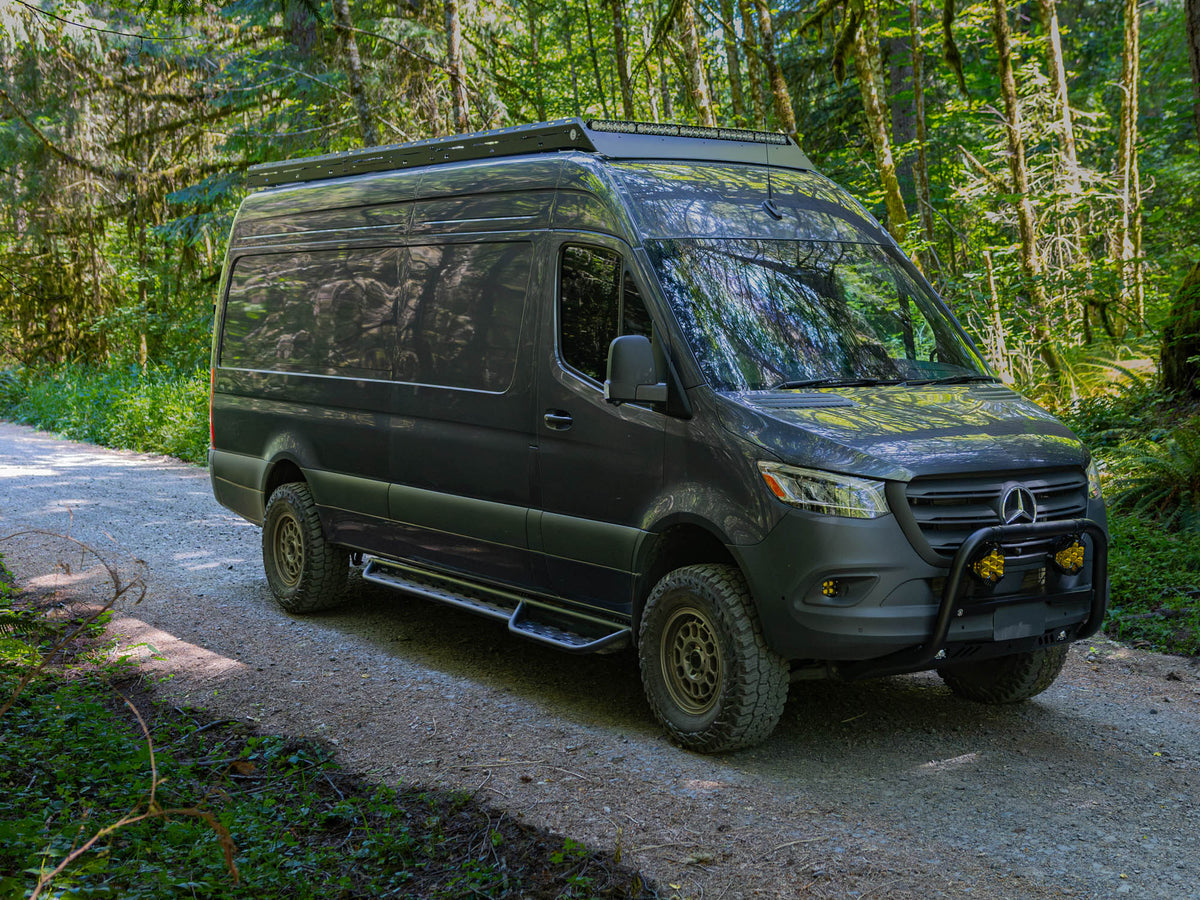

Sprinter aluminum side steps 170 driver side

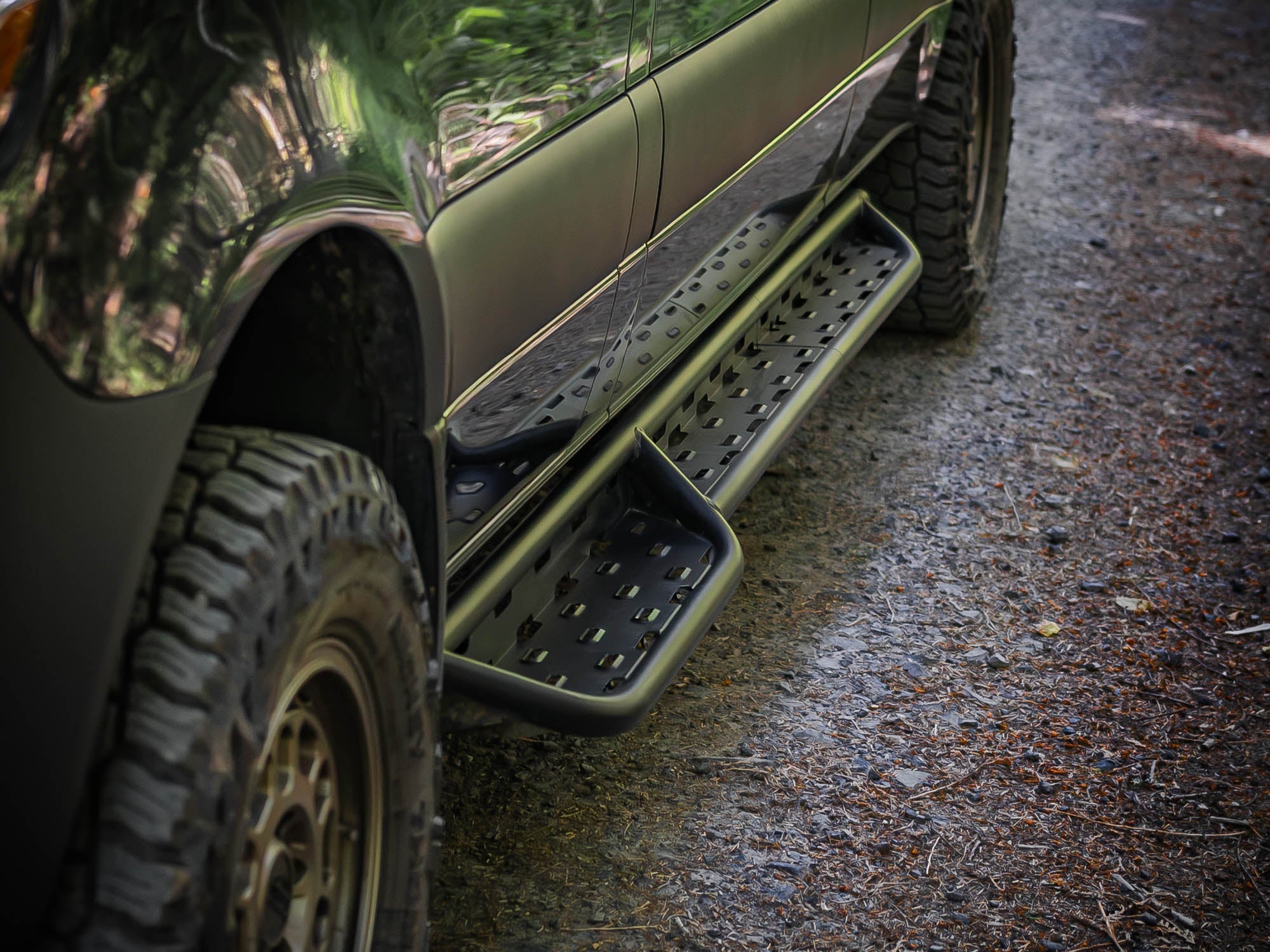

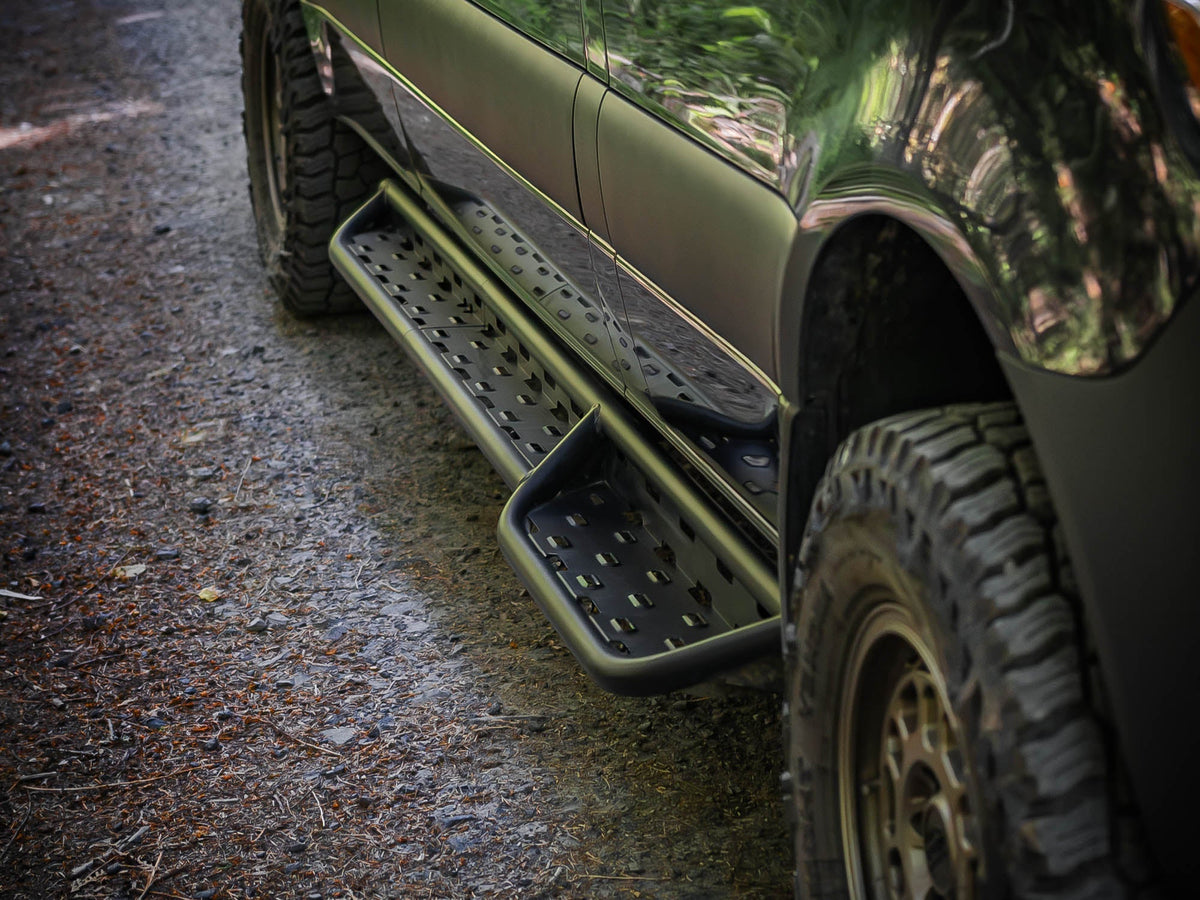

Sprinter aluminum side steps 170 installed traction

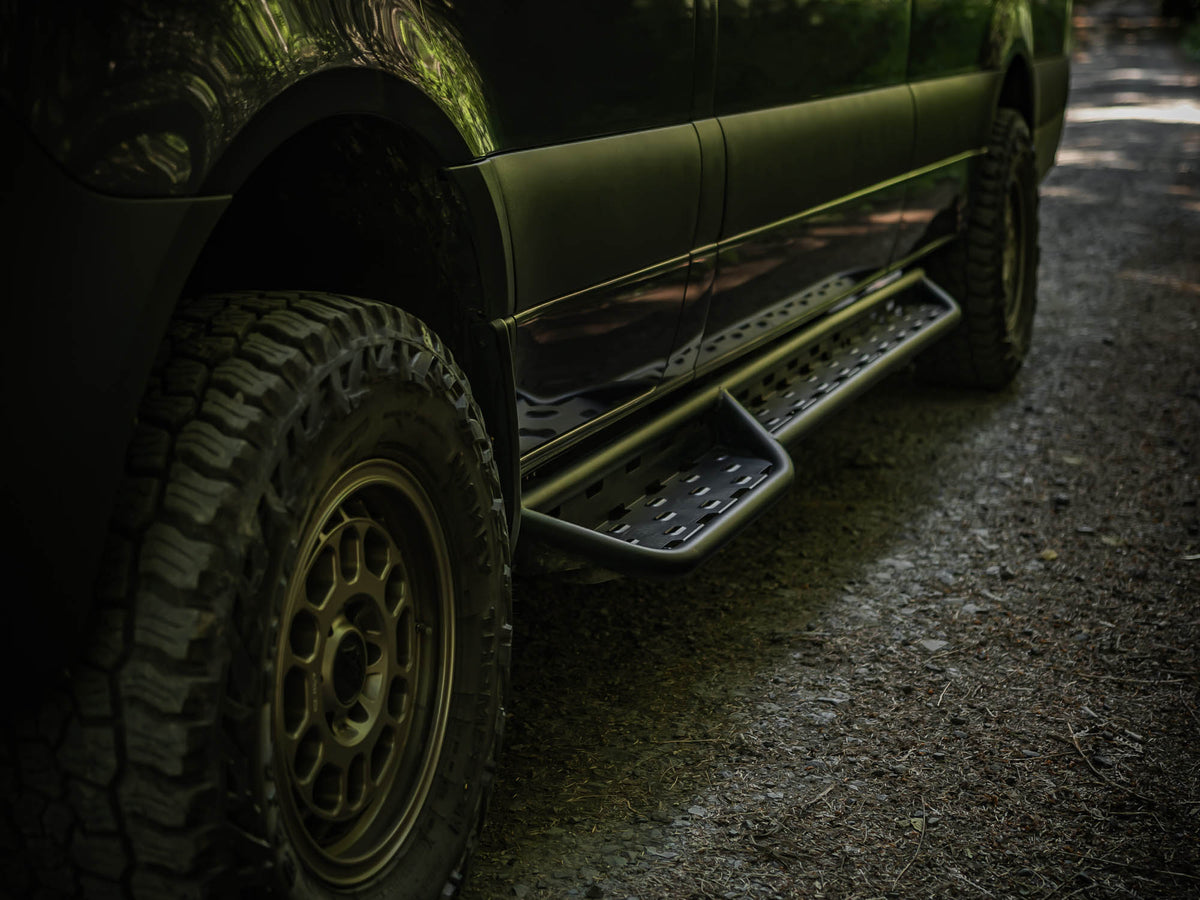

Close-up of the alloy low step tread and drop bracket

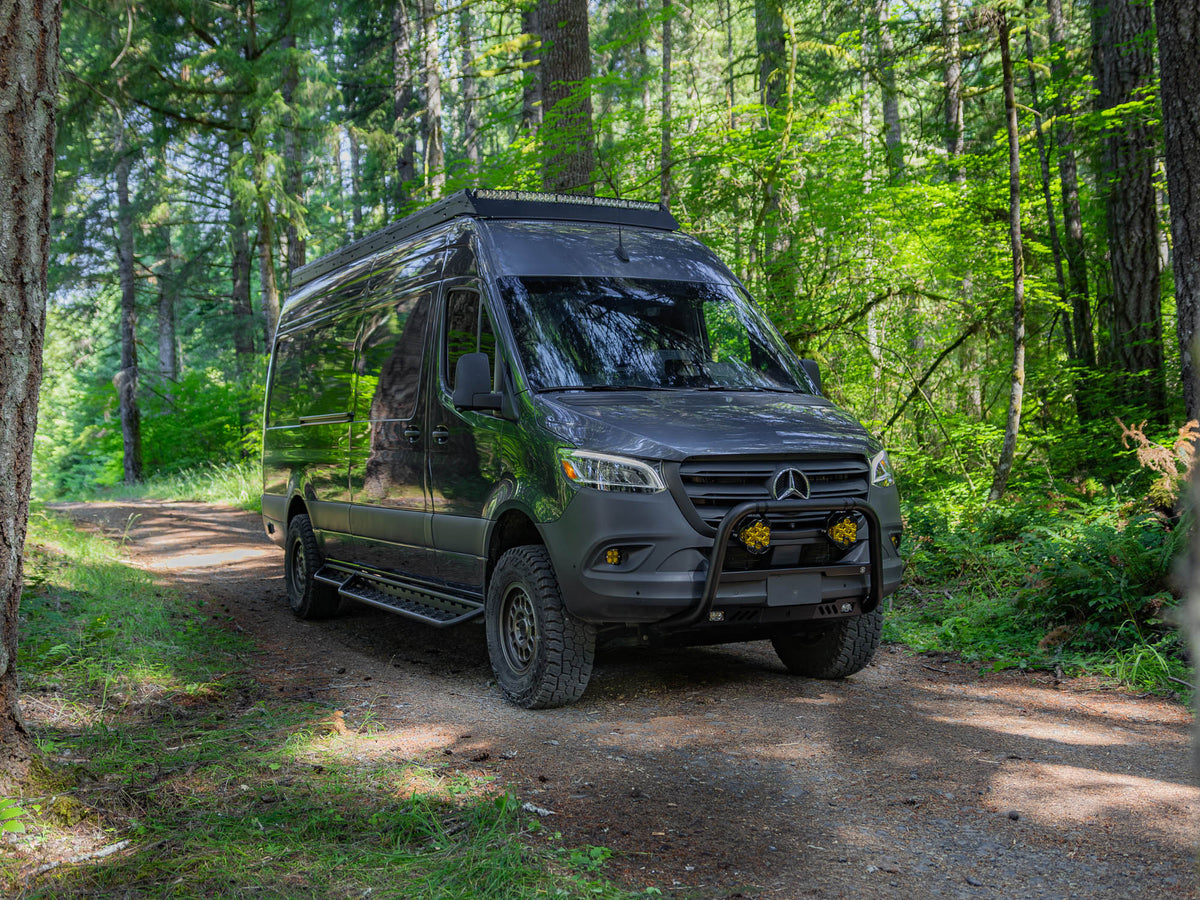

Passenger-side view of the Sprinter Alloy Low Steps fitted

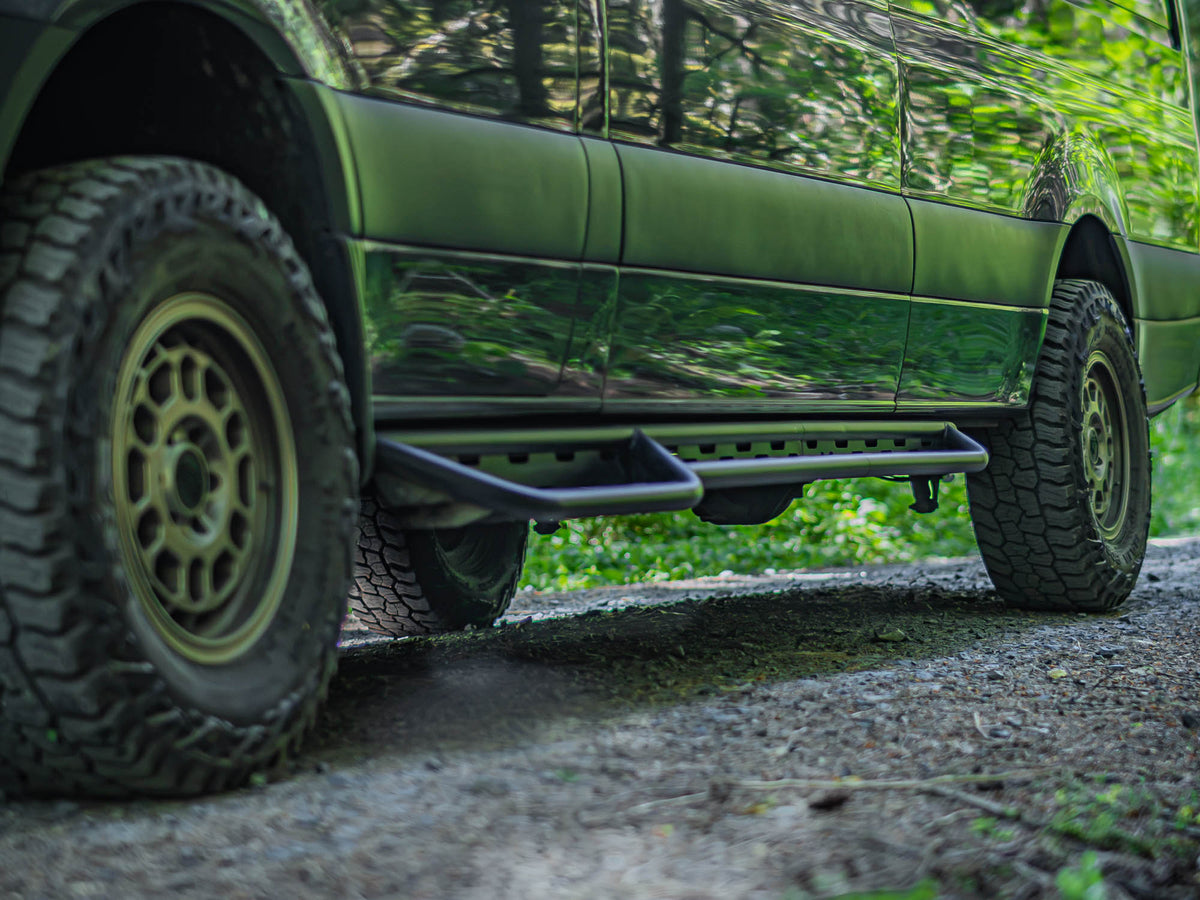

Aluminium round tubing construction detail

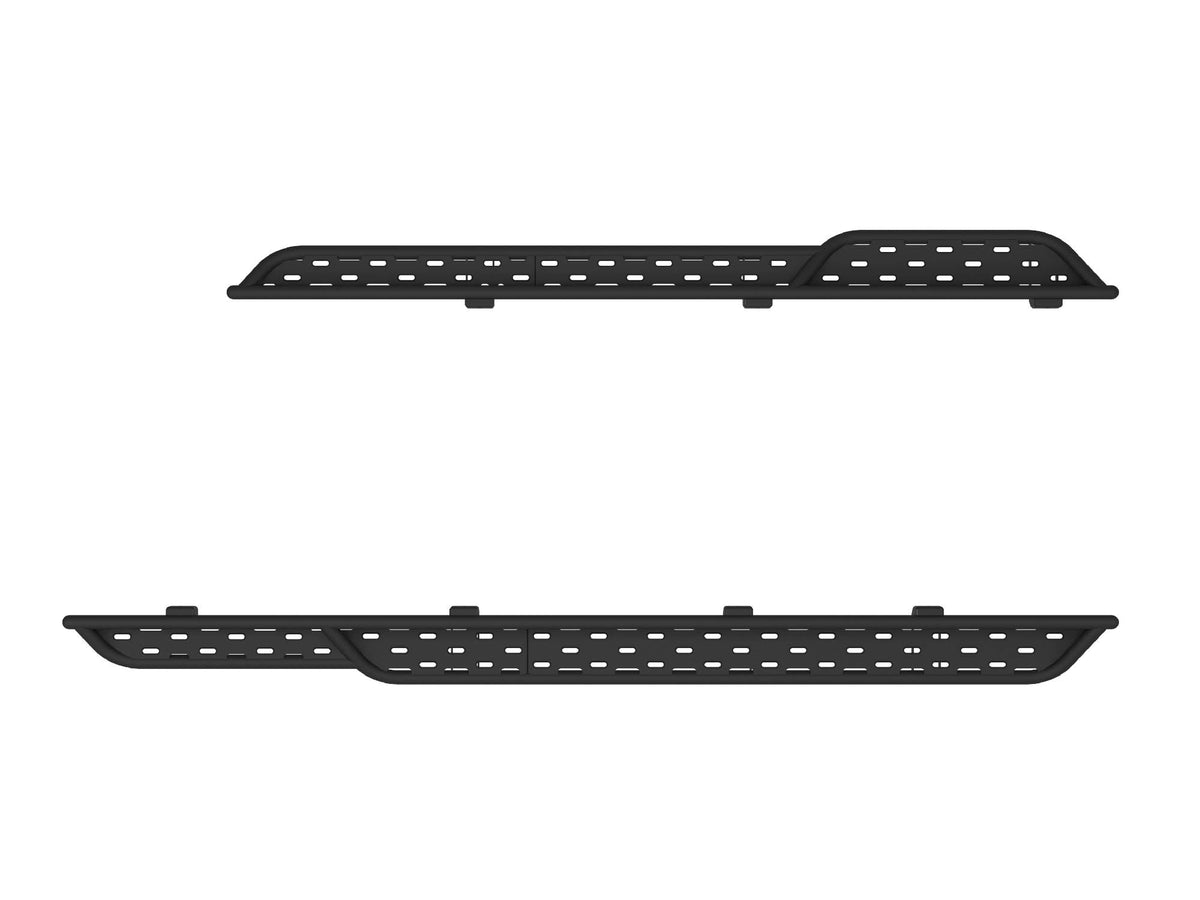

Top-down view of the LWB alloy low step

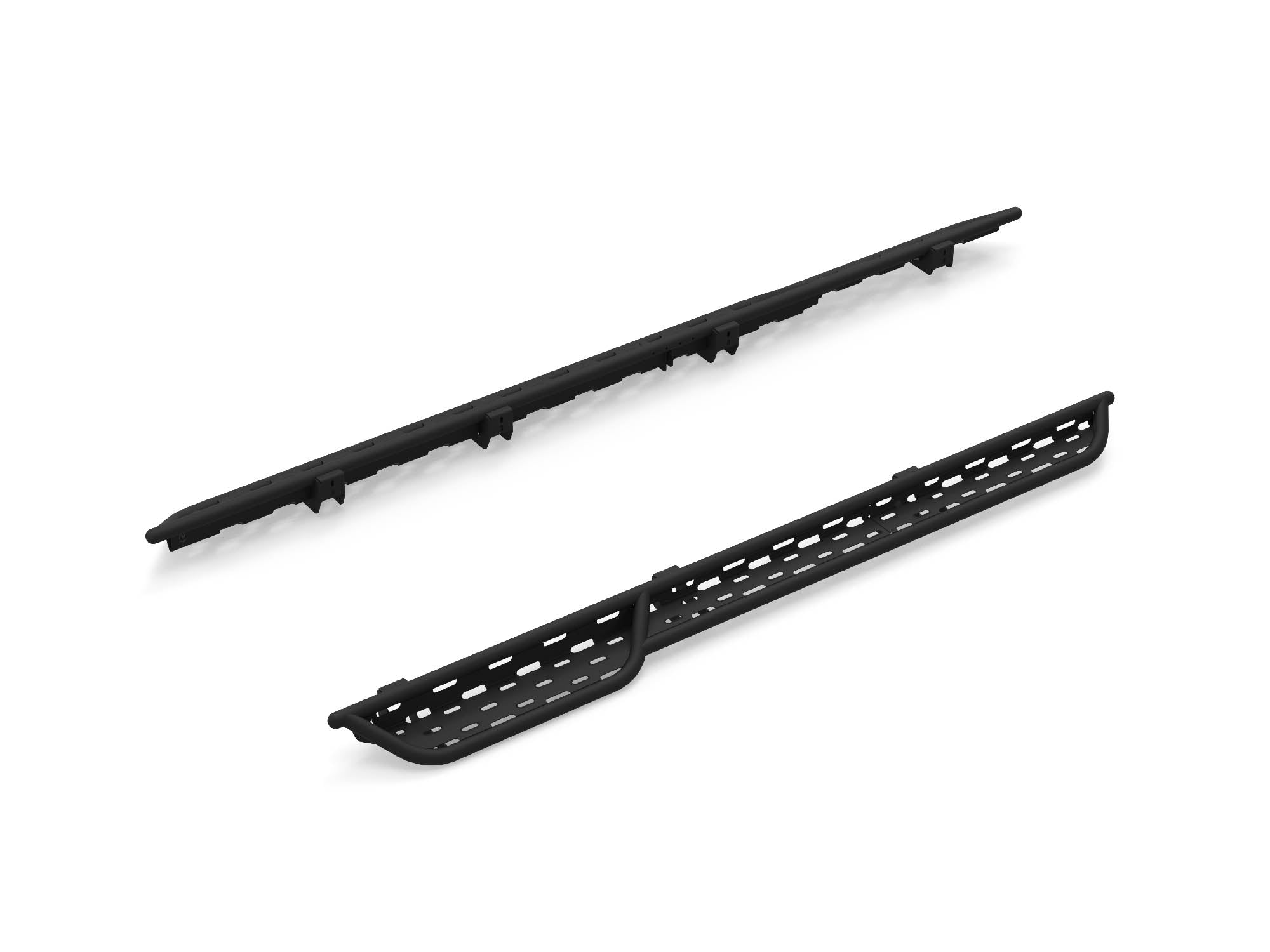

Sprinter aluminum side steps 170

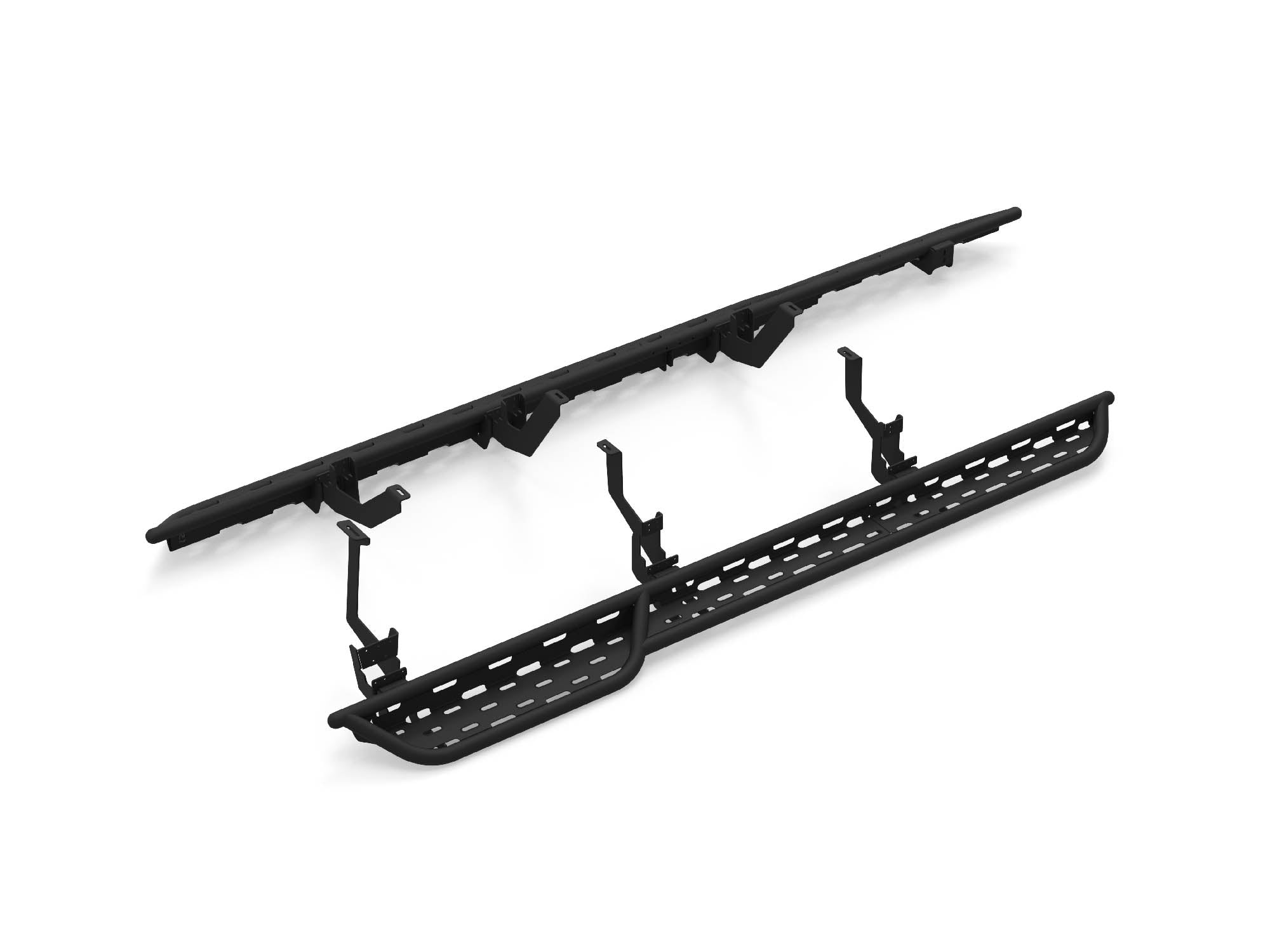

Sprinter aluminum side steps 170 mounting brackets

FVC

Sprinter Alloy Low Steps — LWB

$3,329.00Tax included.
SKU: SP1149B

FVC's alloy side steps drop the step height noticeably lower than a standard side step — the deepest step of any Sprinter side step on the Australian market — putting a solid foothold within easy r...

Add installation None

Fitted by a vetted installer near you, or DIY. Install is quoted and invoiced by the installer — nothing extra is charged here.

Secure Now — ships in 6-8 weeks

Bulky item — freight is quoted live at checkout for your address. Looks high, or want it confirmed first? — pallet rates are often cheaper.
Description

FVC's alloy side steps drop the step height noticeably lower than a standard side step — the deepest step of any Sprinter side step on the Australian market — putting a solid foothold within easy reach even on lifted 4x4 Sprinters, in a lighter build than our steel side steps.

Prefer maximum ground clearance instead? See our Steel Side Steps — LWB, which sit higher and tighter to the body.

They're compatible with the Apex and Standard Side Ladder, and pair with our Surf Pole, without any modifications.

DETAILS

  • Deepest step of any Sprinter side step on the Australian market — drop-style design lowers step height for easier access on lifted vans
  • All-alloy steps and brackets — lighter than steel for the same footprint
  • Oval dimpled tread matching FVC ladder styling for grip in wet or muddy conditions
  • Black powder coat finish
  • Includes all installation hardware

FITMENT

  • Suits the Mercedes-Benz Sprinter LWB — the 4,318 mm (170") wheelbase — 2007 onwards, in both the 906 (NCV3) and 907 (VS30) shapes
  • Low or high roof, cargo or passenger, single or dual rear wheel
  • Vans with an underbelly water tank need a different step — send us your build and we'll confirm the fit
  • Drilling required — the job goes best with two people, or add installation and we'll match you with a vetted installer
Specifications
Fitment Mercedes-Benz Sprinter 906 (NCV3) and 907 (VS30), 2007 onwards
Wheelbase LWB — 4,318 mm (170")
Material Aluminium, steps and brackets
Finish Black powder coat
Tread Oval dimpled no-slip, matched to FVC ladders
Step height Drop-style, lowered for lifted and 4x4 vans
Install time 2.5 hrs
Hardware All mounting hardware included
Warranty 1 yr
Shipping & compliance

Ships from FVC USA. Orders delivered within Australia are tracked door to door. Shipping is calculated at checkout. See our shipping policy for details.

Having your van engineer-certified for other modifications? Tell us and we'll make sure the steps are noted on the certificate — we work with a certifying engineer in every state.

Installation

Typical install time: 2.5 hrs

Bolt-on fit to the sill using the supplied brackets and hardware. Drilling is required and the job goes best with two people — allow around two and a half hours.

Fit them yourself, or add installation above and we'll match you with a vetted installer near you. The installer quotes and invoices the labour directly — nothing extra is charged here.

Not confident doing it yourself? Get in touch and we'll point you to a fitter near you.
