STEDI QUAD PRO LED DRIVING LIGHTS

85000299

$529.00
$529.00
Tax included. Shipping calculated at checkout.
Installation
Features

Part Number: 85000299

Brand:

Added Height:

Dimensions:

Load Capacity:

Install Weight:

Made In:

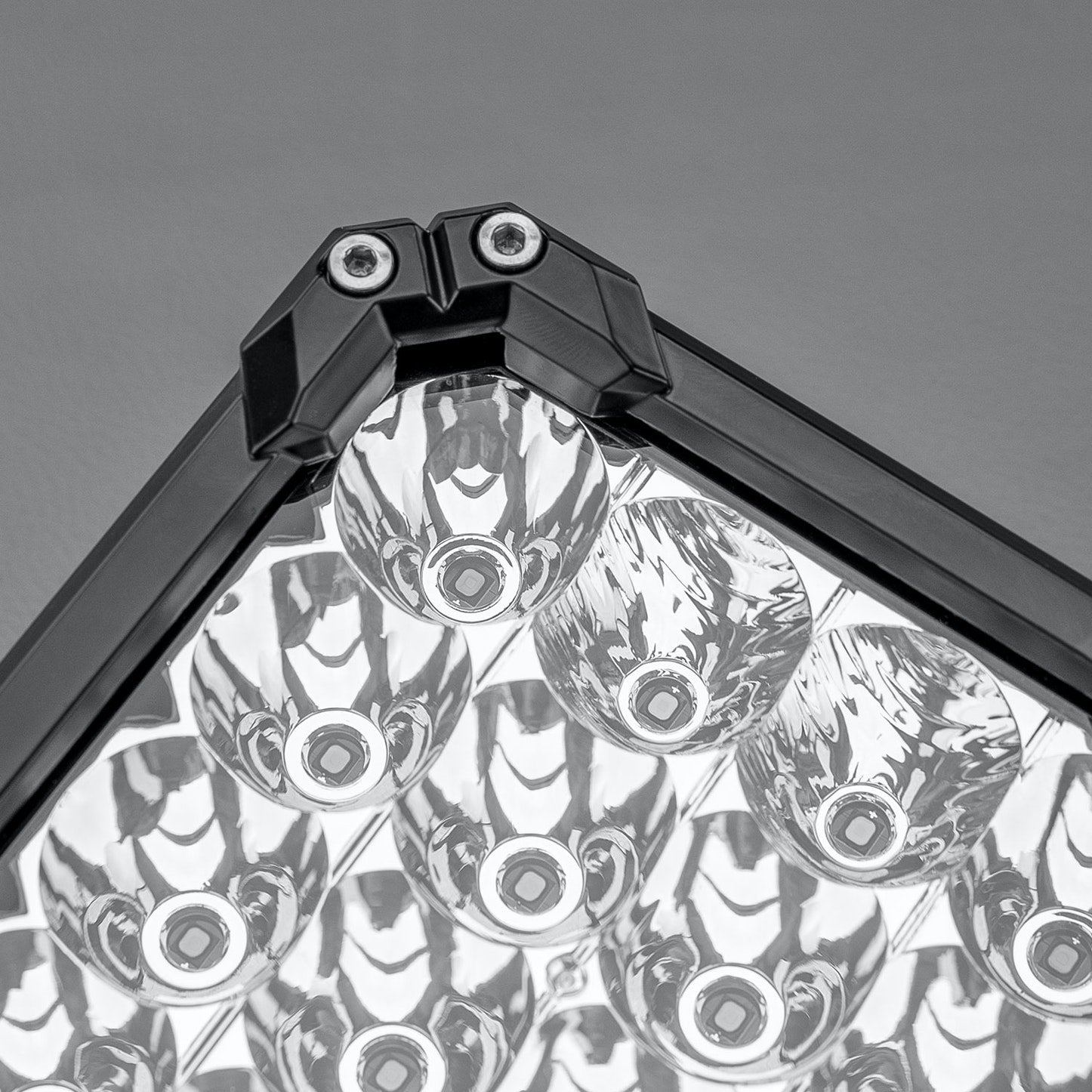

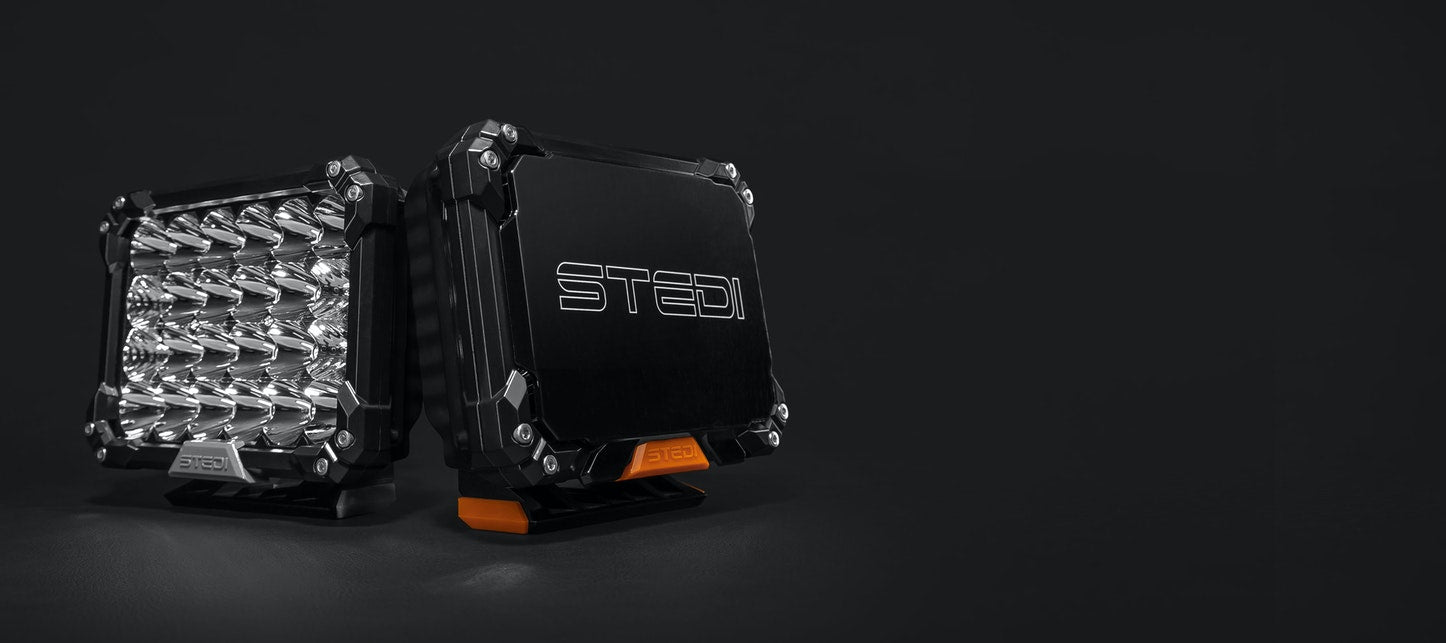

QUAD Pro LED Driving Lights


The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

KEY FEATURES

  • Includes our legendary Easy-Fit plug and play high beam wiring harness
  • IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
  • 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
  • Environmentally sealed Deutsch DT-2 connectors
  • RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.
  • High-Pressure Die-Cast Bracket
  • Spread and Spot beam reflectors built-in.
LED 24 x Oslon High-Flux LED
RAW LUMENS 17,040 (Pair)
TESTED LUMENS 11,360 (Pair)
AMP DRAW 7.4A @ 13.2v (each)
POWER DRAW 97W (each)
CANDELA
 693,889cd
BEAM PATTERN 4 x Spread 20 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 1.4Kg (Including cover) (each)
PHOTOMETRIC DATA
10 m 6,938 Lx
50 m 277 Lx
200 m 17 Lx
300 m 7.7 Lx
400 m 4 Lx
500 m 2.7 Lx
833 m

1 Lx

WHAT'S INCLUDED

  • 2 x QUAD Pro LED Spot Lights
  • 2 x STENCIL Black Out Covers
  • 1 x Set Orange Colour Caps (fitted)
  • 1 x Set Grey Colour Caps
  • Easy Fit High Beam Wiring Harness
  • H4 & HB3 adapters to High Beam
  • Installation Manual
  • Stainless fitting hardware
